OVERVIEW

Form factor : ATX

Chipset : Intel® Z890

Socket : Intel® LGA1851

Processor models supported : Intel® Core™ Ultra Processors (series 2)

Memory slots : 4 x DIMM (Max RAM: 192 GB)

Memory standard : DDR5

Cooling features

- AI Cooling

- Fan cooling

Operating systems supported : Windows 11

EXTERNAL CONNECTIVITY

Video output

- HDMI x 1

- DisplayPort x 1

LAN

- Intel® 2.5Gb Ethernet x 1

- ASUS LANGuard

Audio : Audio jacks x 2

USB

- USB Type-C x 5

- USB 3.0 x 10

- USB 2.0 x 4

Other external connections

- WiFi module x 1

- S/PDIF x 1

INTERNAL CONNECTIVITY

BIOS

- UEFI AMI BIOS

- Flash ROM (256 MB)

Expansion slots

- PCIe 5.0 (x16) x 1

- PCIe 4.0 (x16) (support x 4 mode) x 1

Storage slots

- SATA x 4 (6 GB/s)

- M.2 x 5

Cooling

- 4-pin CPU fan header x 1

- 4-pin CPU OPT fan header x 1

- 4-pin AIO pump header x 1

- 4-pin chassis fan headers x 5

Case

- Power LED x 1

- QLED x 1

Buttons

- Power

- Clear CMOS

- BIOS FlashBack

Power

- 24-pin main power x 1

- 8-pin 12 V power x 2

Sensors

Thermal sensor header x 1

Other internal connections

- Aura RGB header x 1

- CPU Over Voltage jumper x 1

- Front Panel Audio header (AAFP) x 1

- 20-3 pin System Panel header with Chassis intrude function x 1

- Thunderbolt (USB4) header x 1

USB

- USB Type-C x 4

- USB 3.0 x 10

- USB 2.0 x 8

GENERAL

Box contents

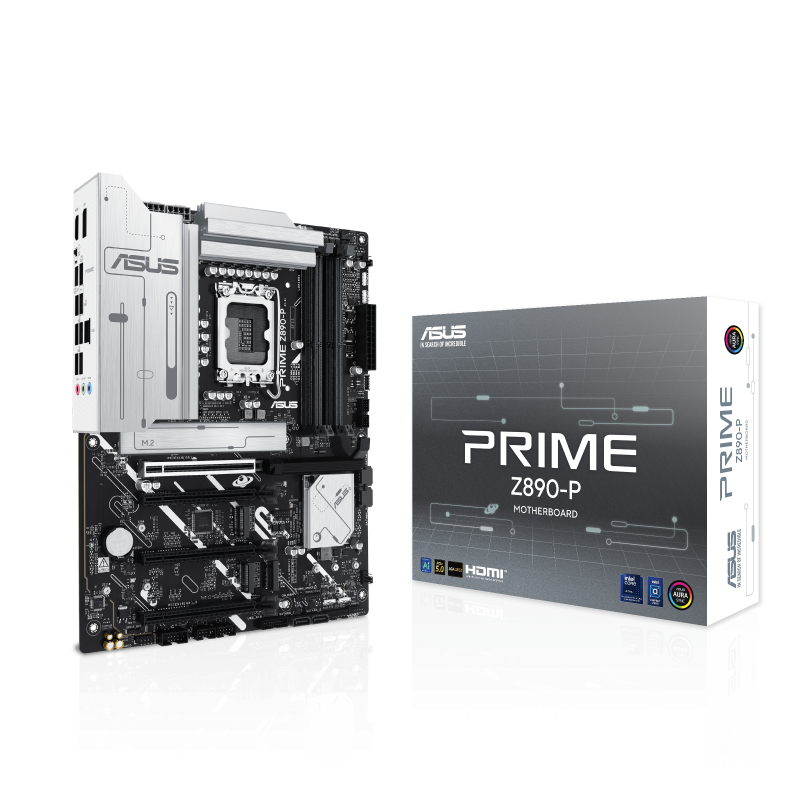

- Asus PRIME Z890-P LGA1851 Motherboard

- SATA 6Gb/s cables x 2

- Additional cooling Kit

- Thermal pad for M.2 22110 x 1

- ASUS WiFi Q-Antenna x 1

- Cable ties package x 1

- M.2 Q-Latch package x 1

- ROG key chain x 1

- ROG Strix stickers x 1

- M.2 rubber packages x 3

- Documentation

- Quick start guide
