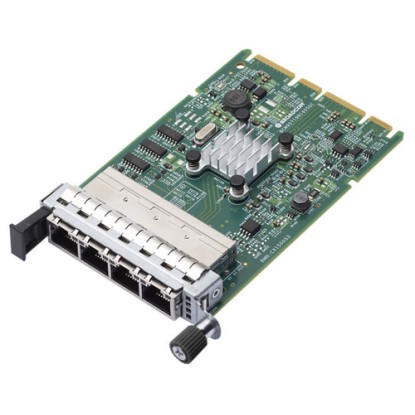

Lenovo Broadcom 5719 Internal Ethernet 1000 Mbit/s

Lenovo Broadcom 5719 Internal Ethernet 1000 Mbit/s
The Broadcom NetXtreme Gigabit Ethernet Adapters are a family of high performance PCIe and OCP adapters. The adapters are available with either two ports or four ports and are supported on ThinkSystem and System x servers.
This product guide provides essential presales information to understand the NetXtreme GbE offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
This product guide provides essential presales information to understand the NetXtreme GbE offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
Delivery 3-4 Business Days
€178.00
Excluding V.A.T: €150.00
- Stock: In Stock
- Brand: Lenovo
- EAN: 4XC7A08235
€463.00
Ex Tax:€390.00
€773.00
Ex Tax:€649.00
€529.00
Ex Tax:€444.00
| Attributes | |
| Delivery | 3-4 Business Days |
| Design | |
| Certification | EN55022, EN55024, EN60950 / CE, EN 61000-3-2, EN 61000-3-3, ICES-003, Issue-004, IEC 950 CB Scheme, FCC 47 CFR Part 15 Class A, |
| Compatible products | R635 (7Y98 / 7Y99), R655 (7Y00 / 7Z01) |
| Internal | Y |
| Product colour | Green,Stainless steel |
| Component for | Server |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100,1000 |
| LAN controller | Broadcom BCM5719 |
| Networking standards | IEEE 1588,IEEE 802.1Q,IEEE 802.1as,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3x,IEEE 802.3z |
| Wake-on-LAN ready | Y |
| Maximum data transfer rate | 1000 |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 80 |
| Operating temperature (T-T) | 10 - 35 |
| Other features | |
| Flow control support | Y |
| Maximum operating temperature | 35 |
| Minimum operating temperature | 10 |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 4 |
| Host interface | PCI Express |
| Interface | Ethernet |
| PCI version | 2.0 |
| System requirements | |
| Compatible operating systems | Microsoft Windows Server version 1709, Microsoft Windows Server version 1803, Red Hat Enterprise Linux 6.10, Red Hat Enterprise |
| Server operating systems supported | SUSE Linux Enterprise Server 12,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Depth | 132 |
| Height | 19 |
| Width | 69 |
