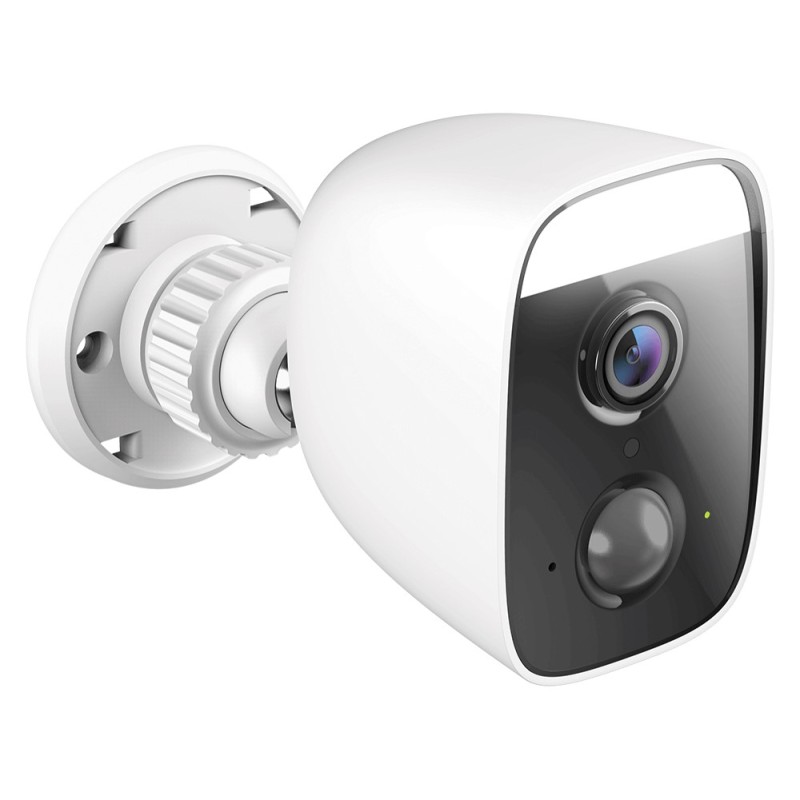

Full HD Outdoor Wi-Fi Spotlight Camera with built-in Smart Home Hub

Your Home Surveillance, Illuminated

The mydlink DCS-8630LH Full HD Outdoor Wi-Fi Spotlight Camera boasts a wide-angle

lens accompanied by a 400 lumen spotlight and color night vision, easily capturing your

entire outdoor area in high-quality 1080p. It’s a built-in Smart Home Hub, turning the

camera into the brain of your mydlink DIY smart home. This is the camera that takes

intelligent home surveillance to a whole new level of smart.

Secure and Monitor Your Home

Instantly know what is happening day or night with the camera’s built-in home security

features. The camera triggers reactions in real-time when the sound of breaking glass

is detected. With the two-way audio system, a piercing 100 dB siren, Color Night Vision

recording and the 400 lumen spotlight, intruders will definitely think twice before

entering your home.

Edge-Based Person Detection

Edge-based Person Detection sets the mydlink Full HD Outdoor Wi-Fi Spotlight Camera

in a class of its own. Edge-based technology processes information in real-time, cleverly

discerning between human and non-human movement. So unlike other cameras that

bog you down with a never-ending stream of irrelevant motion-detection alerts, this

camera is intelligent enough to send you alerts only when it really matters - such as

distinguishing between a moving bug and a person. And since image processing is done

locally on the camera, there’s less lag and less bandwidth required.

Extreme Weather Endurance

The DCS-8630LH can withstand the harshest winter temperatures down to -25°C all the

way up to blistering summer heat waves of up to 45°C. The IP65 certified casing and

7 meter cabling protects against snow and ice, giving you peace of mind even in the

bleakest of winters. Secure the DCS-8630LH against a pole or on the wall to check up on

what’s happening in your outdoor areas without worrying if your camera has frozen over

or been damaged by heat.

Features

♦ True Full-HD quality with 150° wide angle views (1080p at 30 frames per second)

♦ Passive Infrared (PIR) sensor for highly accurate motion detection that reduces false alarms, even in complete darkness

♦ Glass Break Detection AI algorithm detects the sound of breaking or shattering glass

♦ Built-in 100 dB Siren to scare off intruders or alert you to a detection

♦ IPv6 Support

♦ ONVIF Profile S for simple interoperability between cameras and devices such as NAS and CMS

♦ Built-in Smart Home Hub - connects to mydlink Smart DIY devices1 using ZigbeeTM technology2

♦ Works with mydlink Smart Home devices3, Amazon Alexa, and the Google Assistant4

♦ Rich Notifications let you take action right from your lock screen

♦ Record videos5 to a microSD card6, your phone, or the cloud

♦ AES128-encrypted video and audio Streaming

CAMERA

Hardware Profile

• 1/2.9” Progressive CMOS sensor

• 7 m (23 ft) IR illumination distance

• Built-in Infrared-Cut Removable (ICR) Filter module

• Fixed length 2.7 mm

• Aperture F2.0

• Angle of view (16:9):

• Horizontal: 123.8°

• Vertical: 65.4°

• Diagonal: 150°

• Built-in microphone and speaker

Image Features

• Configurable image size

• Person Detection

• Motion Detection (PIR sensor, 1 zone)

• Invert image

• Color Night Vision

Video Compression

• H.264 format compression

Video Resolution

• Max. Resolution: 1080p (1920 x 1080) at up to 30 fps

Audio Support

• MPEG-2 AAC LC

Network Connectivity

• 802.11n/g wireless with the latest industry-standard 128-

bit wireless encryption

• Wi-Fi operates on 2.4 GHz band

• microSD card slot6

• Supports up to 256 GB capacity

• 2T2R supports a maximum data rate of

• 150 Mbps (PHY rate) using 20MHz bandwidth

• 300 Mbps (PHY rate) using 40MHz bandwidth

• Bluetooth Low Energy 4.0

• Zigbee 3.0

Network Protocols

• IPv4, IPv6

• DHCP/DHCPv6 Client

• Bonjour (mDNS and DNS-SD)

• ONVIF Profile S

• RTSP

• SRTP

• RTP/SRTP

• HTTPS

System Integration

Event Management

• Motion detection

• Person detection

• Sound detection

• Cloud recording

• SD card recording

• Day & Night mode

• Glass Breaking sound detection

• Push Notifications with a snapshot when the device

detects motion/people/sound

• Push Notifications with quick action buttons:

• Call up to 2 designated contact numbers

• Live view button

Device Management

• mydlink app • mydlink Portal (for live view only)

Physical

Environment

• For indoor and outdoor use • IP65 weatherproof rating

Weight • 237 g (8.4 oz)

Power Adaptor

• Input: 100 to 240 V AC, 50/60 Hz

• Output: 12 V DC 1.0 A

• Cable length 3 m (9.84 ft)

Power Consumption

 • Maximum 8 W ± 5%

Temperature

 • Operating: -25 to 45 °C (-13 to 113 °F) • Storage: -20 to 70˚ C (-4 to 158 ˚F)

Humidity

• Operating: 20% to 90% non-condensing • Storage: 5% to 90% non-condensing

Certifications

 • CE

• LVD

• RCM

• FCC Class B

• IC

• NCC/BSMI

Dimensions (L x W x H)

• 126 x 84 x 60 mm (5.0 x 3.3 x 2.3 in)
