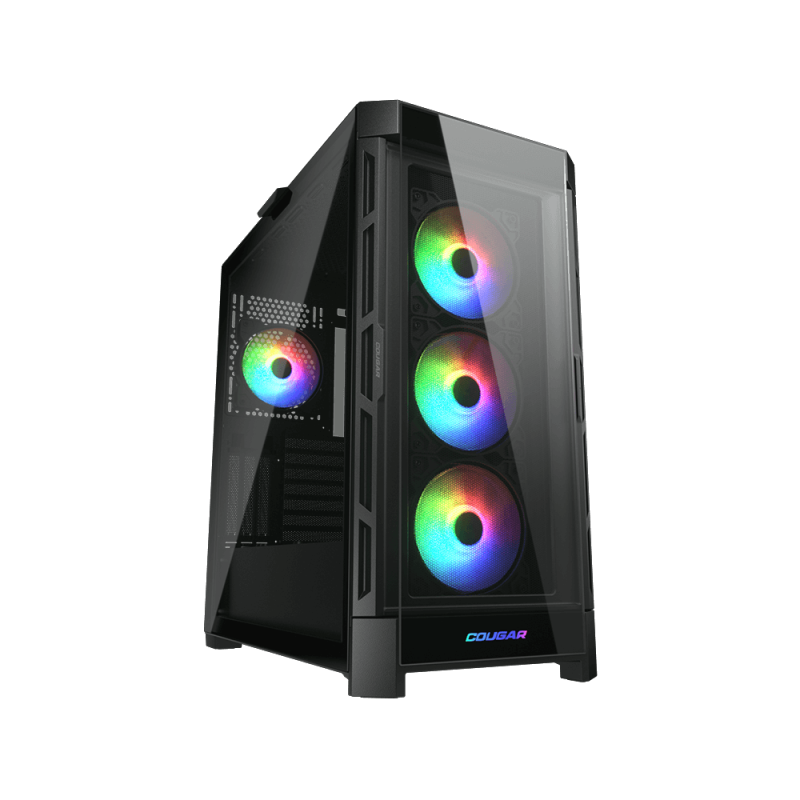

There are always two sides to every story, and the Duoface Pro RGB is no exception. It offers two distinct front panels that showcase the two sides of its personality: one panel puts the dazzling RGB lighting on display, while the other is optimized for superior airflow. This latest addition to the Duoface series is a true embodiment of flexibility and innovative open-layout design.
Specifications
Case Form Factor : Mid Tower
Motherboard Type : Mini ITX / Micro ATX / ATX / CEB / E-ATX
Dimensions (WxHxD) : 240 x 496 x 465 (mm)
I/O Panel : Type C Gen 2 (Key A 20-pin connector) x 1, USB 3.0 x 2, USB 2.0 x 1, 4 Pole Headset Audio Jack x 1, RGB Button
3.5" Drive Bay : 2
2.5" Drive Bay : 2 (2 SSD trays included)
Expansion Slots : 7+3
Vertical GPU Support : Yes
Cooling Fan Support : Front 120mm x 3 / 140mm x 2 - Top 120mm x 3 / 140mm x 2 - PSU Cover : 120mm x 2 - Rear : 120mm x 1 / 140mm x 1 ( Pre-installed Fans : Front : 120mm ARGB fan x 3 - Rear : 120mm ARGB fan x 1 - Speed 1000 RPM - Connector 5V 3 Pin (ARGB) / 3 Pin (Fan) Maximum Number of Fans 9 )
Water Cooling Support : Front : *360mm / 280mm / 240 mm / 140 mm / 120mm - Top : *360mm / 280mm / 240 mm / 140 mm / 120mm - Rear : 140 mm / 120mm
Transparent Left Panel : Tempered Glass
Onboard Lighting System : Yes
RGB Sync with M/B : Yes
COUGAR Logo RGB Light : Yes
Max. Graphics Card Length : 390 (mm) / 15.4 (in)
Max. CPU Cooler Height : 190 (mm) / 7.5 (in)
Max. PSU Length : 200 (mm) / 7.9 (in)
Available with custom builds ONLY
| Attributes | |
| Delivery | Immediately Available |
| Cooling | |
| Bottom fans diameters supported | 120 |
| Fan speed | 0 - 1000 |
| Front fans diameters supported | 120,140 |
| Front fans installed | 3x 120 mm |
| Front radiator sizes supported | 120,140,240,280,360 |
| Liquid cooling capability | Y |
| Number of bottom fans supported (max) | 2 |
| Number of front fans supported (max) | 3 |
| Number of rear fans supported (max) | 1 |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120,140 |
| Rear fans installed | 1x 120 mm |
| Rear radiator sizes supported | 120,140 |
| Top fans diameters supported | 120,140 |
| Top radiator sizes supported | 120,140,240,280,360 |
| Design | |
| Illumination | Y |
| Illumination colour | Multi |
| LED indicators | Y |
| Material | Nylon |
| Product colour | Black |
| Reset button | Y |
| Anti-dust filter | Y |
| Cable management | Y |
| Form factor | Midi Tower |
| Illumination location | Case fans |
| Maximum CPU cooler height | 190 |
| Maximum graphics card length | 390 |
| Maximum PSU length | 200 |
| Number of 2.5" bays | 2 |
| Number of 3.5" bays | 2 |
| Number of expansion slots | 10 |
| On/off button | Y |
| RGB control button | Y |
| Supported motherboard form factors | ATX,CEB,EATX,Micro ATX,Mini-ITX |
| Tempered glass panel(s) | Y |
| Type | PC |
| Logistics data | |
| Country of origin | China |
| Packaging data | |
| Package height | 567 |
| Package weight | 12500 |
| Package depth | 567 |
| Package width | 313 |
| Ports & interfaces | |
| Combo headphone/mic port | Y |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Type-C ports quantity | 1 |
| Power supply | |
| Power supply included | N |
| Storage | |
| Supported HDD sizes | 2.5,3.5 |
| Technical details | |
| Compliance certificates | CE |
| Warranty period | 1 |
| Weight & dimensions | |
| Depth | 465 |
| Height | 496 |
| Weight | 10000 |
| Width | 240 |
