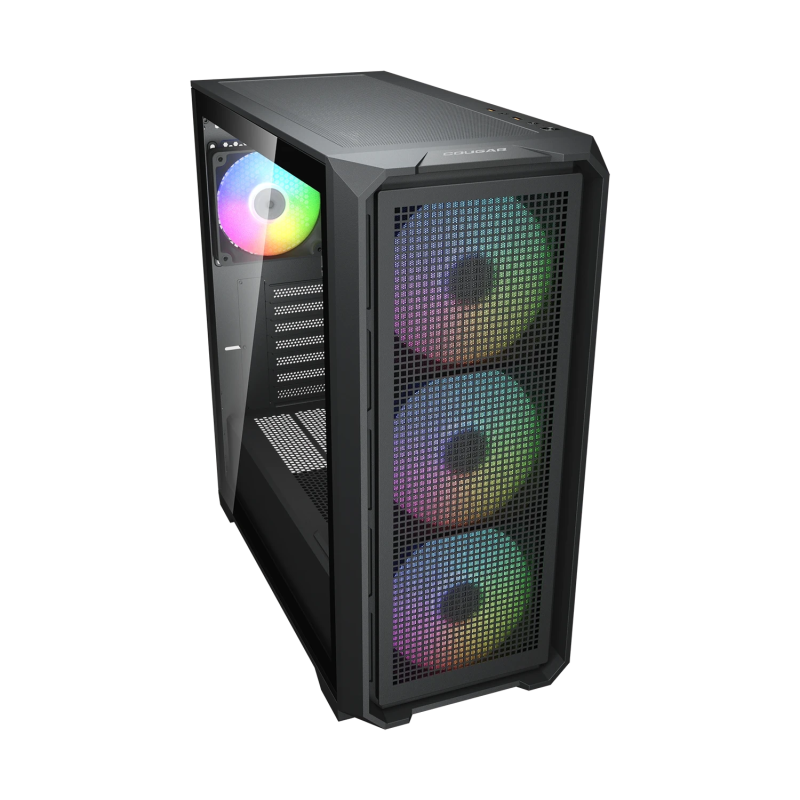

The airflow-prioritized design of the MX600 Air is a perfect storm of optimized cooling: a square-perforated front panel, an airflow-guiding ramp, and support for up to 360mm water cooling.

At a glance

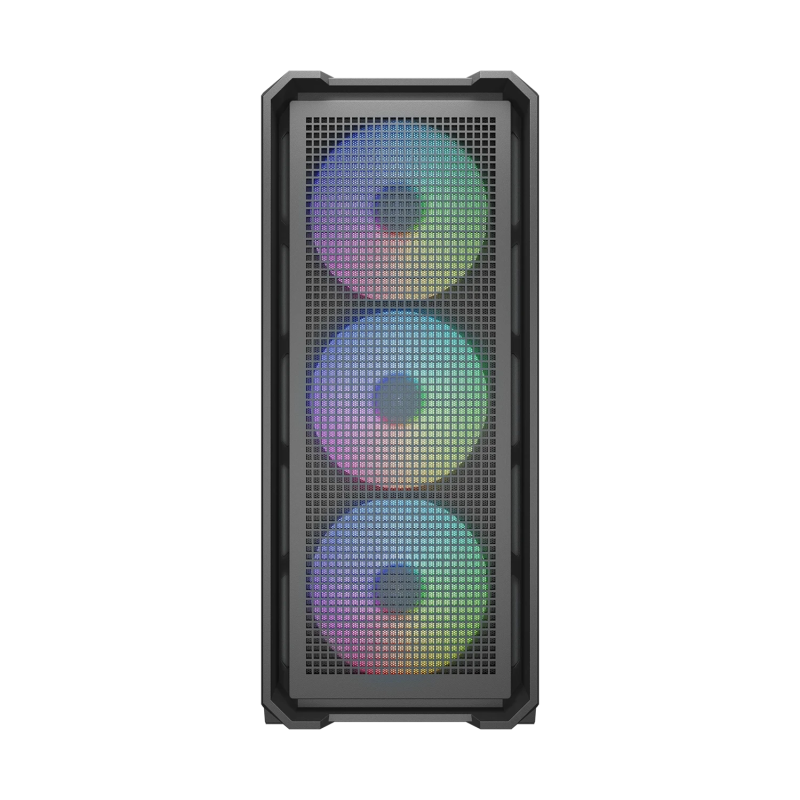

• Square-perforated front panels ensure maximum, optimised airflow.
• Airflow ramp precisely guides air current to cool components.
• Preinstalled ARGB fans: 3x140mm in front and 1x120mm to the rear.  Maximum capacity of 7 fans.
• Supports up to 360mm water cooling (front OR top).
• Accommodates 400mm GPUs and E-ATX motherboards.
• Three dust filters protect against dust. Front panel with built-in filter detaches easily for maintenance.
• USB 3.0 Type-A x 2, 4 pole headset audio jack for versatile device connectivity.
• Houses 1 x 3.5” HDD drives and 2+1 2.5” SSD drives (converted from 3.5” drive bay)

Specifications

Dimensions (WxHxD) : 210(W) x 485(H) x 460(D) (mm)

I/O Panel : USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack, RGB Button

3.5" Drive Bay : 1

2.5" Drive Bay : 2+1 (converted from 3.5" drive bays)

Expansion Slots : 7

Cooling Fan Support : Front 120mm x 3 / 140mm x 3 ( Pre-installed ) - Top 120mm x 3 / 140mm x 2 - Rear 120mm x 1 ( Pre-installed ) - Speed 1000 ± 10% RPM - Connector 5V 3 Pin (ARGB) / 3 Pin (Fan) - Maximun Number of Fans 7

Water Cooling Support : Front  360mm / 280mm / 240mm / 140mm / 120mm - Top  360mm / 280mm / 240mm / 140mm / 120mm - Rear 120mm

RGB Hub Sync with M/B : Yes

Max. Graphics Card Length : 400(mm)

Max. CPU Cooler Height : 165(mm)

Max. PSU Length : 180(mm)
