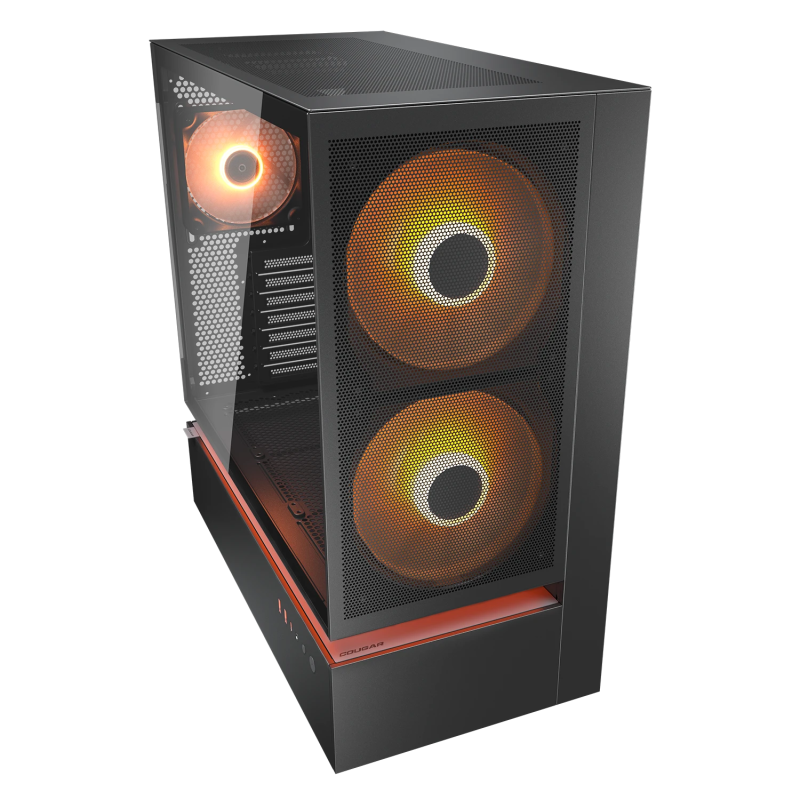

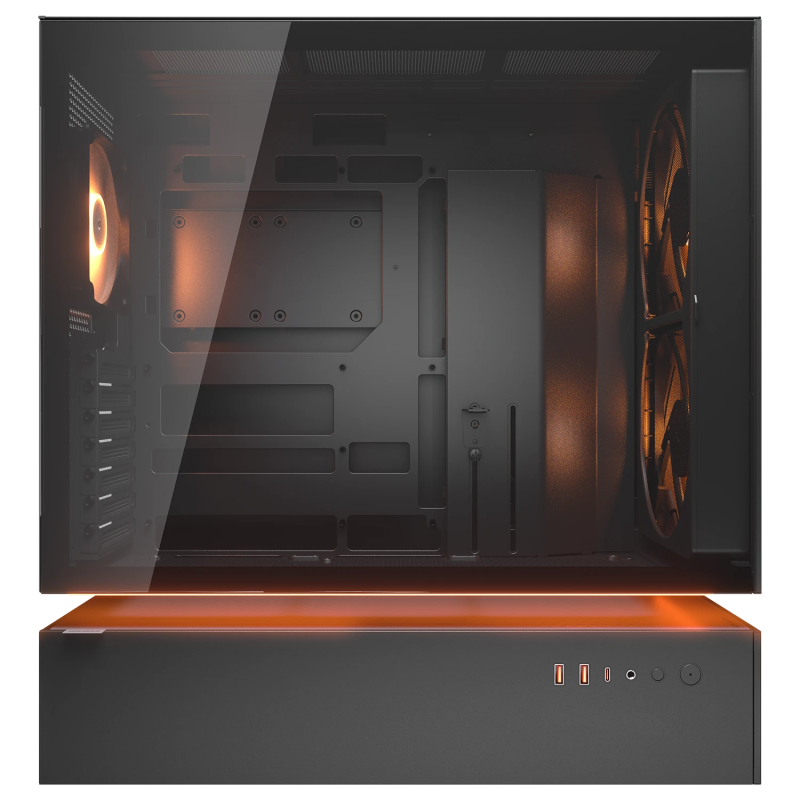

The CFV235 Mesh is a new kind of PC case featuring the innovative Central Floating Ventilation (CFV) structure. This divides the PSU cabin and main chamber, retooling the open space in between as a cooling advantage by accessing extra ventilation, preserving a compact footprint without compromising architecturally-enhanced cooling. Paired with a 3-in-1 front panel module—combining mesh, dual 160mm ARGB PWM fans, and a dust filter into a single pre-assembled unit— the CFV235 Mesh empowers airflow beyond ordinary dimensions.

• Central Floating Ventilation free-floating separation provides a unique visual identity.
• True floating void adds an extra dimension of airflow across 270° of access.

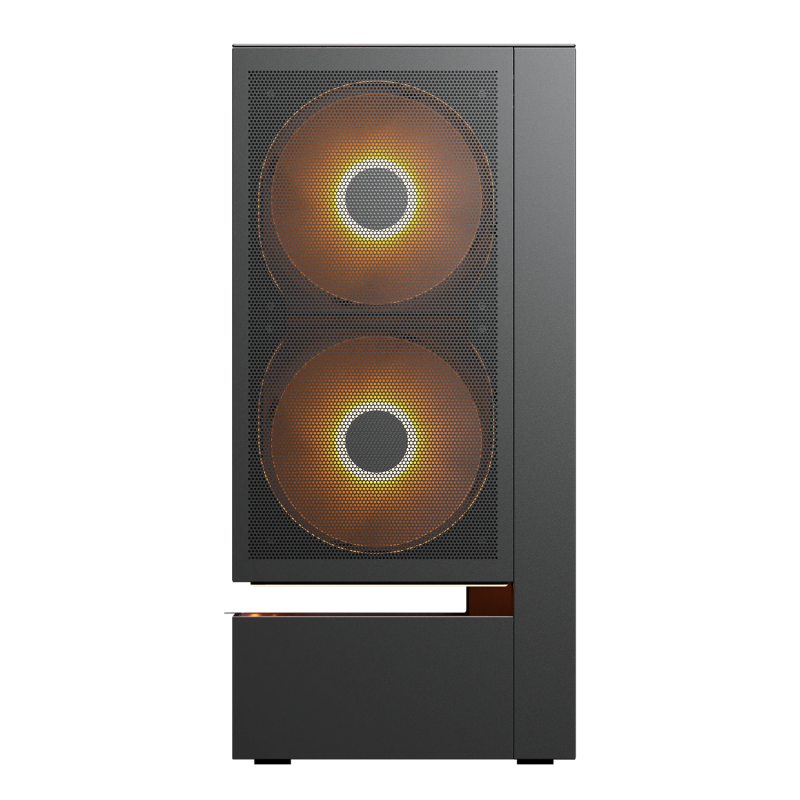

• A 3-in-1 front panel module pre-assembles a dust filter, dual pre-installed 160mm ARGB PWM fans, and mesh panel into a single unit for even easier maintenance.
• The module uses a pogo pin to connect with the case’s built-in counterpart, minimizing cabling for easy setup and a cleaner view.
• The Aurora RGB lighting strip brings the awe and glory of RGB lighting to the free-floating space.
• Accommodates a maximum GPU length of 400mm.
• Compatible with Reverse Connector / Mini ITX / Micro ATX / ATX / CEB motherboards.
• USB 3.2 Gen 2×2 Type-C (20 Gbps) x 1, USB 3.0 Type-A x 2, 4 pole headset audio jack for versatile device connectivity.
• Houses 2 x 3.5” HDD drives and 2+2 2.5” SSD drives (converted from 3.5” drive bays)

Specifications

• Dimensions (WxHxD) : 235 x 493 x 460 (mm)
• I/O Panel : USB 3.2 Gen 2x2 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button
• 3.5" Drive Bay : 2
• 2.5" Drive Bay : 2+2 (converted from 3.5" drive bays)
• Expansion Slots : 7
• Cooling Fan Support : Front 160mm x 2 ( Pre-installed ) - Top 120mm x 3 / 140mm x 2 - Bottom 120mm x 3 - Rear 120mm x 1 ( Pre-installed ) - Speed : 160mm ARGB PWM fan: 500-1200 ± 10% RPM - 120mm ARGB PWM fan: 500-1400 ± 10% RPM - Connector : 5V 3 Pin (ARGB) / 4 Pin PWM (Fan) - Maximun Number of Fans : 9
• Water Cooling Support : Top 360mm / 280mm / 240mm / 140mm / 120mm - Rear 120mm - Aurora LED Strip Included - PWM and RGB hub Sync with M/B : Yes
• Max. Graphics Card Length : 400mm
• Max. CPU Cooler Height : 175mm
• Max. PSU Length : 200mm
